HONGYE SILICONE’s Low Shrinkage Mold Silicone is a professional two-component addition-curing silicone, specially engineered for stable, dimensionally accurate mold manufacturing. As a national high-tech enterprise with standardized production and one-stop solutions, this liquid silicone is FDA-certified, non-toxic, odorless, temperature-resistant (-60℃~250℃), featuring ultra-low shrinkage, excellent fluidity and high durability. It supports full customization, helping global mold suppliers and manufacturers ensure consistent mold dimensions, reduce rework rates, and enhance competitiveness in batch production scenarios.
Product Overview
Our Low Shrinkage Mold Silicone is a professional-grade liquid silicone tailored for high-stability, batch mold making scenarios. Composed of flowable Part A and Part B, this RTV 2 Silicone Rubber adopts advanced addition curing technology, enabling both room-temperature and heat curing with simple operation. It achieves ultra-low shrinkage (≤0.1%) deep curing without thickness limits, maintains stable mechanical performance, and excels in detail replication, perfectly meeting the rigorous requirements of industrial, artistic and large-scale mold manufacturing for dimensional consistency.
Technical Specifications
Type: Two-component addition-curing RTV 2 Silicone Rubber (liquid silicone); Mix Ratio: 1:1 (by weight); Operating Time (25℃): 30~40 minutes (customizable); Curing Time (25℃): 4~5 hours; 80~120℃ for tens of minutes (customizable); Temperature Resistance: -60℃~250℃; Hardness: 20~28 Shore A (customizable); Shrinkage Rate: ≤0.1%; Shelf Life: 10 months (sealed, indoor storage); Fluidity: 700~1100 mPa·s; Tensile Strength: ≥3.5MPa; Application: Low shrinkage mold silicone, Mold Making Silicone, Industrial mold silicone rubber, resin casting molds, cultural stone molds, precision handboards.
Product Images and Videos

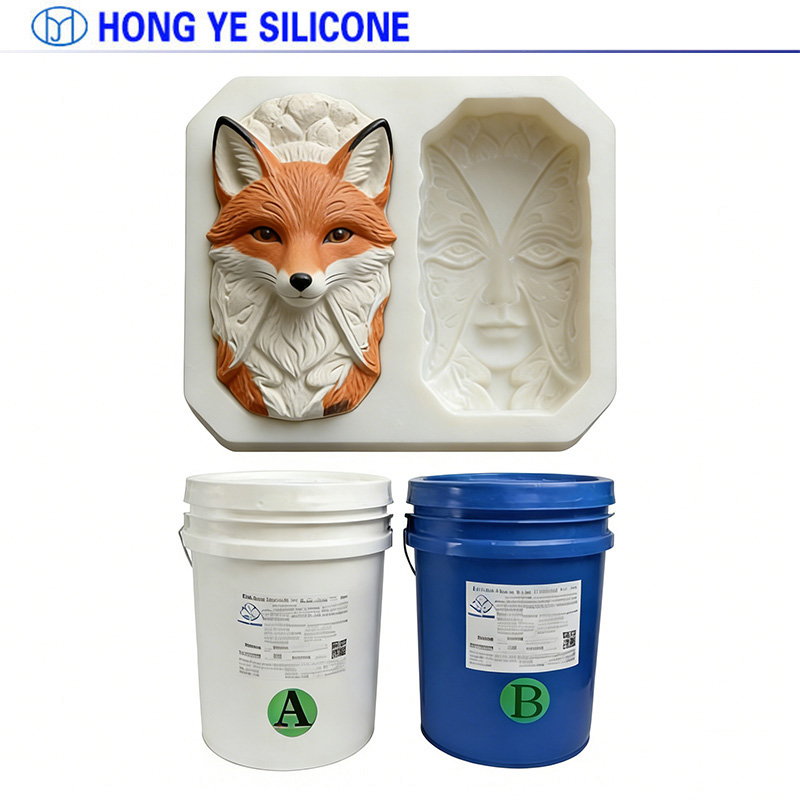

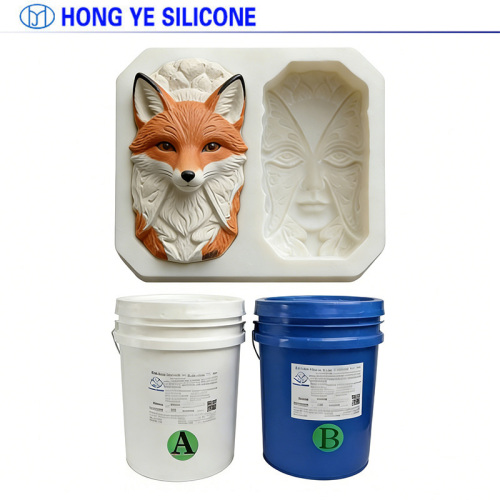

High-quality images show the silicone’s smooth texture, mold filling details, finished dimensionally stable molds, and close-ups of shrinkage-free curing effects. Demonstration videos display the full mold making workflow: silicone mixing, vacuum degassing, pouring, curing, and demolding, highlighting its ultra-low shrinkage, stable performance and easy operation. Original image addresses are retained for direct website integration.
Product Features & Advantages
1. Ultra-Low Shrinkage Performance: Shrinkage rate ≤0.1% after curing, ensuring consistent mold dimensions batch after batch, avoiding dimensional deviation and reducing rework rates, far superior to ordinary mold making silicone and Condensation Curing Silicone Mold Rubber. 2. Advanced Addition Curing: No by-products during curing, deep curing without thickness limits, ensuring mold structure stability and long service life.
3. Excellent Detail Replication: Optimized fluidity ensures full filling of intricate mold details while maintaining low shrinkage, balancing precision and stability.
4. High Durability: High tensile and tear resistance, supporting 50~80 mold cycles, suitable for long-term batch production, reducing mold replacement costs.
5. Safe & Eco-Friendly: FDA-certified Food grade mold silicone, non-toxic, odorless, compatible with resin, metal, concrete, meeting global safety standards. 6. Easy Operation & Customization: 1:1 mix ratio, dual curing options; shrinkage control, hardness, operating time can be tailored to diverse mold needs.
How to Use (Step-by-Step)
1. Mix Part A and Part B of the low shrinkage mold silicone in a 1:1 weight ratio, stirring thoroughly for 2~3 minutes until uniform and bubble-free (critical for maintaining low shrinkage and dimensional stability).
2. Vacuum degas the mixture for 2~5 minutes (time varies by viscosity) to eliminate bubbles that affect mold quality and dimensional accuracy.
3. Slowly pour the degassed silicone into the master mold, leveraging its excellent fluidity to ensure full coverage of all intricate details.
4. Cure at room temperature (4~5 hours) or heat at 80~120℃ for accelerated curing, fitting batch production timelines.
5. Gently demold the cured silicone mold, clean before reuse; store unused silicone sealed indoors, away from sunlight and rain to preserve its low shrinkage performance.
Application Scenarios
This low shrinkage mold silicone is widely used in batch and high-stability mold making scenarios, including industrial mold silicone rubber production, resin casting molds, cultural stone and concrete molds, precision handboards, metal craft molds, and large-scale mold manufacturing. It brings tangible value: ensuring consistent mold dimensions, reducing rework costs by 30%+, improving batch production efficiency, and helping suppliers meet the high-demand requirements of global industrial manufacturing industries.
FAQ
1. What is the shrinkage rate of this mold silicone? It has an ultra-low shrinkage rate of ≤0.1%, ensuring consistent mold dimensions batch after batch.
2. Is it suitable for large-scale batch mold production? Yes, its low shrinkage and high stability make it perfect for batch production, avoiding dimensional deviation.
3. How many mold cycles can it withstand? 50~80 cycles with proper cleaning and maintenance, cost-effective for long-term use.
4. Can we customize the shrinkage rate for specific mold needs? Yes, we support customized shrinkage control, hardness and curing time to fit diverse mold requirements.
5. Is it compatible with concrete and resin casting materials? Yes, it bonds well with concrete, resin and metal, ensuring stable mold performance in various applications.
