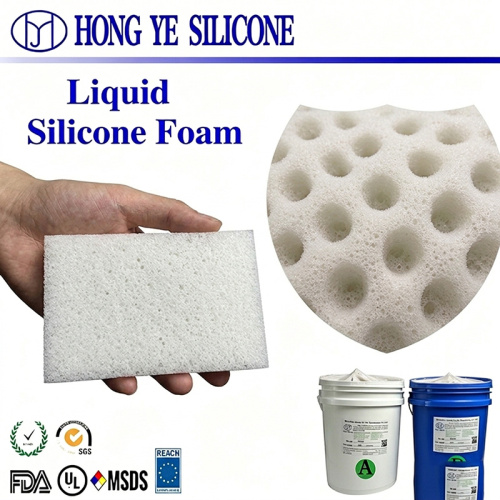

Advanced Foamed Silicone for Electronic Protection

Advanced Foamed Silicone for Electronic Protection

Get Latest Price

Payment Type:	T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF
Min. Order:	1 Kilogram
Transportation:	Ocean,Land,Air,Express
Port:	shenzhen

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: HY-F series

Brand: HONG YE SILICONE

Origin: HUIZHOU

Certification: 9001

Packaging & Delivery

Selling Units	:	Kilogram
Package Type	:	1kg/5kg/25kg/200kg
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

foamed silicone rubber 17



Product Description

Product Abstract

HongYe silicone rubber.This Ultra-Thin product is a high-performance Addition Curing Silicone, also categorized as RTV Silicone Foam for precision electronic assembly. Formulated with high-purity liquid silicone, the finished Foam Silicone features ultra-thin structure, stable density and excellent insulation. With adjustable foaming ratio of 2~7 times, the lightweight Foamed Silicone is widely used for circuit board gaskets, micro component buffer layers and thin-type sealing parts. It works perfectly with professional Mold Silicone to produce slim electronic accessories and reduce product assembly defects.

Product Overview

This ultra-thin Foaming Silicone Rubber is developed specially for miniaturized electronic products. After mixing and heating vulcanization, it forms delicate and uniform Silicone Sponge with controllable thickness. Different from conventional thick foaming materials, this material retains all advantages of standard RTV Silicone Foam , and its good fluidity makes it ideal for filling tiny gaps inside precision devices. It is a mainstream raw material matched with various electronic production molds.

Core Product Features & Advantages

Ultra-thin molding: The refined liquid silicone formula supports ultra-slim finished parts without breaking or deforming.

Stable pore structure: Even tiny cells ensure the Silicone Sponge keeps consistent performance in long-term use.

Excellent insulation: As typical Addition Curing Silicone, it provides reliable dielectric protection for electronic parts.

Low shrinkage: This Foaming Silicone Rubber owns minimal dimensional change after full curing.

Wide temperature resistance: The qualified Foam Silicone maintains elasticity steadily from -65℃ to 200℃.

Step-by-Step Usage Instructions

Pre-stirring: Stir A and B two-component liquid silicone separately to eliminate sediment.

Proportion mixing: Blend materials at 1:1 ratio and stir fully for 2-3 minutes to activate curing properties.

Vacuum defoaming: Remove micro air bubbles to guarantee the uniformity of final Foamed Silicone.

Heating curing: Place into molds made by Mold Silicone and heat to complete foaming and shaping.

Application Scenarios

It is mainly applied to PCB board sealing gaskets, miniature sensor buffer pads and thin electronic equipment shockproof layers. The ultra-thin RTV Silicone Foam can be processed into various slim accessories, greatly improving the assembly precision and service life of precision electronics.

Precautions

Avoid direct sunlight and long-time high-temperature baking. Keep away from sulfur, heavy metals and moisture, which will affect the curing effect of Foaming Silicone Rubber.

Packaging & Storage

A component: 25KG, 200KG, 250KG per barrel; B component: 20KG, 25KG, 200KG per barrel. Transported as non-dangerous goods, store in sealed, cool and dry area to protect raw liquid silicone.
