Product Overview

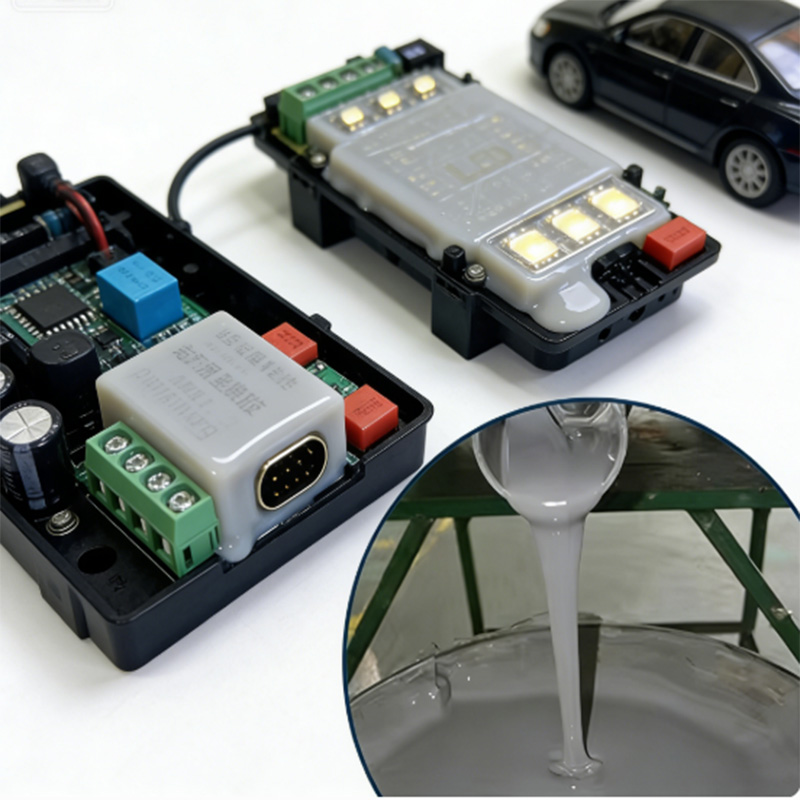

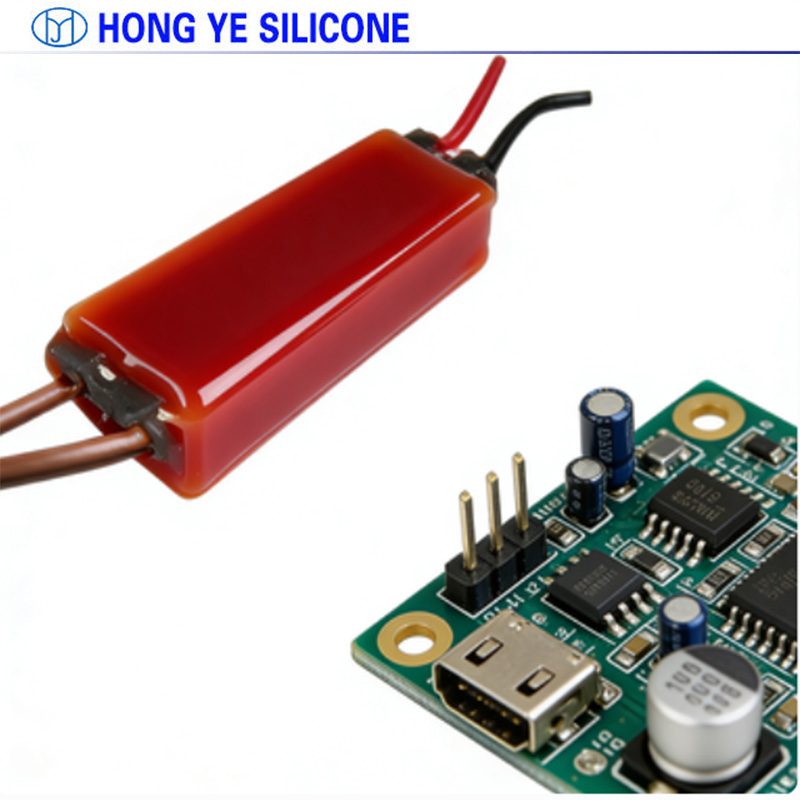

Our Electronic Potting Compound is specially developed for wireless charging pads, used to encapsulate, seal and protect charging coils, control modules, PCB boards and electronic components. As a professional supplier of liquid silicone and Thermally Conductive Potting Compound, we provide a reliable alternative to traditional Epoxy Potting Resin. This low-viscosity formula (model HY-9055 as reference) is tailored for wireless charging scenarios—ensuring efficient heat dissipation, strong adhesion to PC, ABS, PVC and metals, and no interference with wireless signal transmission, guaranteeing long-term stable operation of charging pads. Technical Specifications
This is a two-component low-viscosity electronic potting silicone (model HY-9055 as reference), with customizable parameters. Key properties:
- Mixing ratio (A:B): 1:1 by weight
- Dynamic viscosity: 3000±500 mPa·s (liquid state)
- Operating time (25℃): 30-120 minutes; Full curing time: 12-24 hours
- Hardness after curing: 55±5 Shore A; Thermal conductivity: ≥0.4 W(m·k)
- Insulation performance: Dielectric strength ≥25 KV/mm; Volume resistance ≥1.0×1016 Ω·cm
- Defoaming: Recommended at 0.08MPa for 3 minutes; Flame retardancy: UL94-V1
- Customizable: Hardness, viscosity and operating time can be adjusted as needed
Product Features & Advantages
- Low Viscosity & Fast Curing: Low viscosity for easy pouring, fast room-temperature deep curing, adapting to mass production of wireless charging pads, improving production efficiency.
- Excellent Thermal Conductivity: Efficiently dissipates heat generated during wireless charging, avoiding overheating and extending charging pad service life.
- Signal Compatibility: High insulation without interfering with wireless signal transmission, ensuring stable, efficient charging performance.
- Strong Adhesion: Excellent bonding to PC, ABS, PVC, metals and PCB boards, ensuring tight encapsulation and no component detachment.
- Flame-Retardant & Safe: UL94-V1 flame-retardant rating, fully complying with EU RoHS standards, eliminating fire risks and ensuring user safety.
- Waterproof & Dust-Proof: High sealing performance, protecting internal components from moisture and dust, adapting to daily use environments.
How to Use (Step-by-Step)
- Pre-Mix Preparation: Fully stir Component A to evenly mix settled fillers, and shake Component B thoroughly before use to ensure uniform viscosity and performance.
- Component Mixing: Mix Component A and Component B strictly at a 1:1 weight ratio, stirring continuously until homogeneous.
- Vacuum Defoaming: Place the mixed compound in a vacuum container and defoam at 0.08MPa for 3 minutes to remove air bubbles.

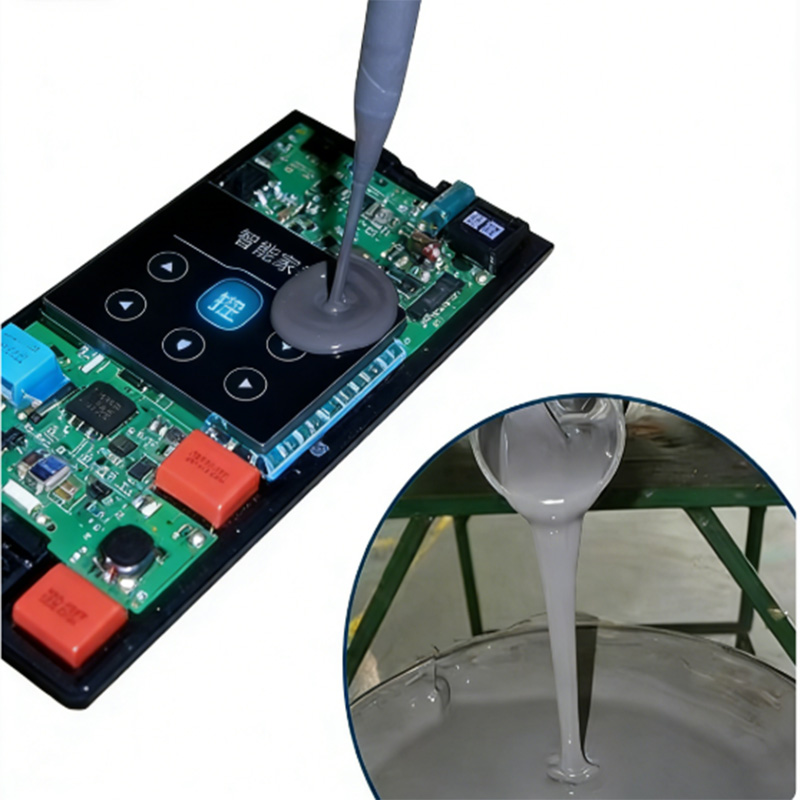

- Curing Process: Pour the mixture into wireless charging pad housings; cure at room temperature. Basic curing takes 3-5 hours, full curing takes 12-24 hours (ambient temperature/humidity affects speed).
Application Scenarios
This Electronic Potting Compound is specifically designed for wireless charging pads, including mobile phone wireless chargers, wireless charging stands, smart watch chargers and industrial wireless charging modules. It encapsulates charging coils, control boards and electronic components, ensuring stable charging performance and safety. For purchasers, it improves product reliability, reduces failure rates, enhances heat dissipation efficiency, and boosts competitiveness in the global wireless charging market.
Customization Options
We provide full customization for wireless charging pad requirements:
- Adjust curing hardness, viscosity and operating time to match different charging pad sizes and production processes.
- Optimize thermal conductivity and viscosity for fast-charging wireless pads.
- Provide formulas beyond HY-9055 to meet specific technical needs (e.g., higher flame-retardant rating).
- Support OEM & ODM services and flexible packaging (5kg, 20kg, 25kg, 200kg).
Certifications & Compliance
Our Electronic Potting Compound fully complies with EU RoHS standards, holding ISO 9001, CE certifications. It has stable batch performance, is non-toxic, non-hazardous and environmentally friendly, with UL94-V1 flame-retardant rating, widely trusted by global wireless charging device manufacturers and component suppliers.
FAQ
Q: Will this potting compound interfere with wireless charging signals?
A: No. It has high insulation and signal compatibility, ensuring no interference with wireless signal transmission, maintaining stable charging efficiency.
Q: How to store unused potting compound?
A: Seal Component A and B separately, store in a cool dry place (shelf life: 12 months). Use mixed compound at one time; stir well if layering occurs, which does not affect performance.
Q: Is it suitable for fast-charging wireless pads?
A: Yes. It has excellent thermal conductivity, efficiently dissipating heat from fast charging, avoiding overheating and ensuring safe, stable operation.
Q: Can it be customized for small-size wireless chargers (e.g., smart watch chargers)?
A: Yes. We can adjust viscosity and operating time to match small-size chargers, ensuring precise potting and full protection without affecting charging performance.
