Electronic Potting Silicone for Wireless Chargers
Electronic Potting Silicone for Wireless Chargers
Electronic Potting Silicone for Wireless Chargers
Electronic Potting Silicone for Wireless Chargers
Electronic Potting Silicone for Wireless Chargers
Electronic Potting Silicone for Wireless Chargers

Electronic Potting Silicone for Wireless Chargers

Get Latest Price
Payment Type:T/T,Paypal
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF
Min. Order:1 Kilogram
Transportation:Ocean,Land,Air,Express
Port:shenzhen
Contact Now
Product Description
Product Attributes
Packaging & Delivery
Product Description
Other information
Product Attributes

Model No.: HY-9315

Brand: HONG YE SILICONE

Origin: HUIZHOU

Certification: 9001

Place Of Origin: China

Packaging & Delivery
Selling Units : Kilogram
Package Type : 1kg/5kg/25kg/200kg
Picture Example :

The file is encrypted. Please fill in the following information to continue accessing it

Inquire the password
electronic potting compound2
Product Description
HONG YE SILICONE Electronic Potting Silicone for Wireless Chargers is a high-performance two-component addition-curing thermally conductive silicone. It features low viscosity, excellent fluidity, UL94-V0 flame retardancy, and IP65 waterproof rating. Suitable for wireless charger modules, power supplies, and electronic components, it works stably from -60℃ to 220℃, with good adhesion to PC, ABS, PVC and metals. It supports room-temperature or heated curing, ensures efficient heat dissipation and reliable insulation, meets ROHS standards, and is fully customizable to fit different wireless charger production needs.

HY-SILICONE company

Product Overview

HONG YE SILICONE Electronic Potting Silicone for Wireless Chargers, also called Thermally Conductive Potting Compound and Silicone Encapsulant, is a professional two-component addition-curing RTV silicone. It is specially developed for wireless charger manufacturing, integrating thermal conductivity, flame retardancy, insulation, waterproofing, and shock resistance. With low viscosity and excellent fluidity, it can fully fill tiny gaps of wireless charger components, forming a soft rubber-like protective layer after curing to extend product service life.

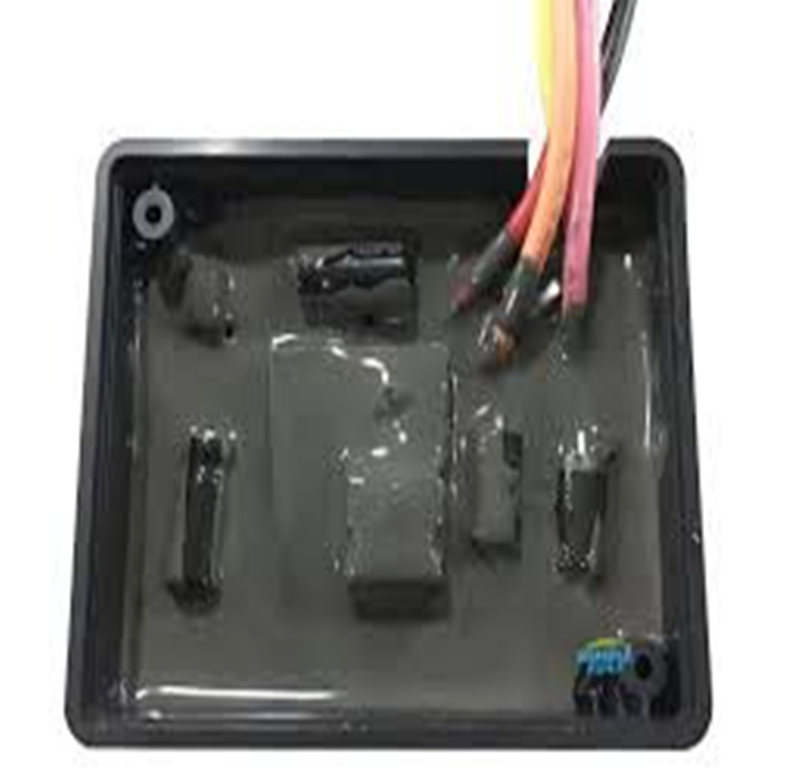

electronic potting compound

Product Features & Advantages

  • Superior thermal conductivity (≥0.8 W/(m·K)) and heat dissipation, solving overheating problems of wireless chargers during operation
  • UL94-V0 flame retardancy and IP65 waterproof grade, fully complying with EU ROHS directives, safe and reliable
  • Wide temperature range (-60℃ to 220℃), stable performance in various environments, adapting to different usage scenarios of wireless chargers
  • Low viscosity (500±100 cps) and good fluidity, easy to pour and fill, improving production efficiency
  • Excellent adhesion to PC, ABS, PVC and metal surfaces, strong bonding force, no peeling or cracking
  • Compared with common Potting Compound, it has faster curing speed and better flexibility, suitable for mass production of wireless chargers

Technical Specifications

Based on model HY-9315 (customizable): Mixing ratio (A:B) 1:1 (weight), mixed viscosity 500±100 cps, operable time 0.5-2 hours (room temperature). Curing time: 4-5 hours at room temperature, 20 minutes at 80℃. Cured hardness: 15±5 Shore A, dielectric strength ≥25 kV/mm, volume resistivity ≥1.0×10¹⁶ Ω·cm, flame retardancy UL94-V0.

How to Use

  1. Stir Part A and Part B thoroughly in their respective containers before mixing to ensure uniform dispersion of fillers.
  2. Mix Part A and Part B strictly at a weight ratio of 1:1, stirring evenly.
  3. Defoam the mixed liquid if needed: put it into a vacuum container and defoam at 0.08MPa for 5 minutes, then pour it into wireless charger components.
  4. Cure at room temperature (4-5 hours) or by heating (20 minutes at 80℃); thick application may require longer curing time.

Application Scenarios

Specially designed for wireless charger industry, it is widely used in: wireless charger modules, power supply units, control boards, charging coils, and electronic components of wireless charging devices. It effectively protects internal components from moisture, dust and impact, improves heat dissipation efficiency, and ensures stable operation of wireless chargers. It is also compatible with other electronic products, such as power modules and microcomputer control boards, same as our other high-quality products like Mold Making Silicone and Pad Printing Silicone.

Certifications & Compliance

Our Electronic Potting Silicone for Wireless Chargers complies with ISO9001 quality management system, meets EU ROHS directives, and has UL94-V0 flame retardant certification, ensuring it meets international industry standards and is suitable for global market sales.

Customization Options

We provide flexible customization services: adjust hardness, viscosity and operable time; optimize thermal conductivity and flame retardant performance; customize packaging specifications and curing speed to match different wireless charger production lines and product requirements.

FAQ

Q: Is this product addition-curing or condensation-curing?
A: It is addition-curing silicone, non-toxic, low volatility, and no damage to wireless charger components.
Q: Can it be used for mass production of wireless chargers?
A: Yes, it has good fluidity and adjustable curing speed, compatible with automated pouring lines, improving production efficiency.
Q: What packaging specifications are available?
A: 5kg, 20kg, 25kg and 200kg, which can be customized according to your order quantity.
Q: Does it meet international export standards?
A: Yes, it complies with ROHS, UL and ISO standards, suitable for export to global markets.
