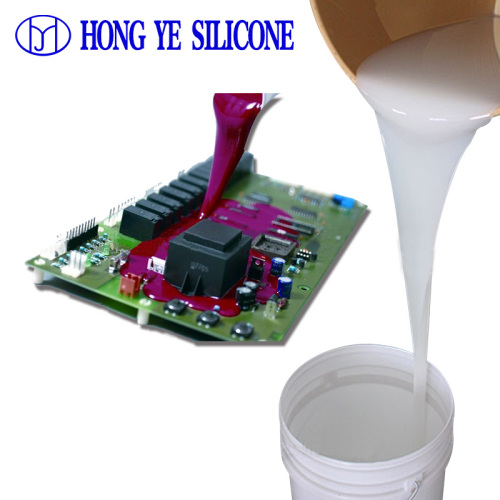

HONG YE SILICONE’s Electronic Potting Silicone for Security Systems (Model HY-9045) is a high-performance two-component Addition Curing Silicone, tailored for security system electronic components. With 1:1 mixing ratio, it cures at room or elevated temperature, featuring non-exothermic, non-corrosive, low-shrinkage properties, and excellent flame retardancy, insulation and waterproofing. RTV 2 Silicone Rubber, fully compliant with international standards, it supports parameter customization, paired with our Silicone raw materials and Silicone Encapsulant to ensure stable operation of security systems, meeting global B2B procurement needs.
Product Overview
As a core security-grade product of HONG YE SILICONE, our Electronic Potting Silicone (also called Silicone Potting Compound or Electronic Encapsulation Adhesive) is a new-type flame-retardant material engineered for security system components. Different from epoxy potting resin, this two-component addition curing silicone cures smoothly without exotherm or corrosion, forming a dense protective layer. It is widely used for sealing, potting and fixing security electronic components, with excellent adaptability to PCB substrates, power modules and display screens, ensuring long-term stability in harsh environments. Product Features
1. Superior flame retardancy & insulation: High-grade flame-retardant formula, excellent insulation performance (dielectric strength ≥25kv/m, volume resistance ≥1×10¹⁵Ω), preventing fire and short circuits in security equipment.
2. Gentle curing process: Cures at room or elevated temperature, non-exothermic, non-corrosive, low shrinkage, avoiding damage to sensitive security electronic components during curing.
3. All-round protection: Waterproof, moisture-proof, mildew-proof and dust-proof, with good chemical resistance, yellowing resistance and weather aging resistance, adapting to outdoor and harsh security scenarios.
4. Easy operation: 1:1 weight mixing ratio, simple to stir and defoam (0.08MPa for 3 minutes), 30-60 mins operable time at 25℃, suitable for automated production.
5. Customizable & stable: Adjustable hardness (45±5A°), viscosity and operating time; 1-year shelf life at 25℃, stir evenly if layered, no impact on performance.
Technical Specifications
Model HY-9045: Addition curing silicone, two-component liquid, 1:1 mixing ratio, viscosity 2500±500Pa.s. Cured hardness 45±5A°, operable time 30-60 mins (25℃), curing time 4-5 hrs (80℃), dielectric strength ≥25kv/m, dielectric constant 3.0 (1.2MHz). Non-hazardous, transportable as general chemicals; other models and parameters are available for customization.
Application Scenarios
Widely applied in potting, sealing and fixing of security system electronic components, including surveillance cameras, access control systems, alarm devices, security power modules, LED/LCD security displays and PCB substrates. It is suitable for indoor and outdoor security equipment, effectively protecting components from moisture, dust and external damage, ensuring 24/7 stable operation of security systems.
Core Value for Buyers
1. Enhance security reliability: All-round protection reduces security equipment failure rate, ensuring 24/7 stable operation and improving product credibility.
2. Reduce production costs: Simple operation, fast curing and 1:1 mixing ratio improve production efficiency, avoiding component damage and material waste.
3. Compliance & risk control: Meets international security and environmental standards, avoiding trade barriers, suitable for global security markets.
4. Versatile adaptation: Compatible with various security components, customizable parameters, matching diverse security equipment production needs.
How to Use
1. Pre-mixing: Fully stir Component A and B separately in their own containers to ensure uniform mixing of fillers.
2. Mixing: Stir Component A and B in 1:1 weight ratio until fully fused.
3. Defoaming: Place mixed glue in a vacuum container, defoam at 0.08MPa for 3 minutes before potting.
4. Curing: Cure at room temperature, or heat appropriately in low temperatures (winter) to accelerate curing; wait for full curing before subsequent processes.
Certifications and Compliance
Produced under HONG YE SILICONE’s ISO9001 quality management system, our Electronic Potting Silicone meets international flame retardant, insulation and environmental standards, complying with EU RoHS directives. It is safe, non-hazardous and compliant with global security equipment import requirements, enhancing product credibility for overseas procurement.
Customization Options & Packaging
Customization: Adjustable cured hardness, viscosity, operating time and curing speed; custom formulas for special security scenarios. Packaging: 5kg, 20kg, 25kg and 200kg, suitable for bulk B2B procurement and different production batch needs.
FAQ
Q1: What substances should be avoided during use? A1: Avoid contact with organotin compounds, sulfur/sulfides, amines, incompletely cured condensation silicone, amine-cured epoxy resin and solder flux, as they prevent curing.
Q2: Can it be used for outdoor security cameras? A2: Yes, it has excellent waterproof, weather-resistant properties, adapting to outdoor harsh environments.
Q3: How to store unopened potting silicone? A3: Seal and store below 25℃, shelf life 1 year; stir evenly if layered.
Q4: Is mixed glue reusable? A4: No, mixed A/B components should be used up at one time to avoid curing and waste.
Q5: Is it safe to use? A5: Yes, it is non-hazardous; avoid contact with mouth and eyes, rinse with water if accidentally contacte
