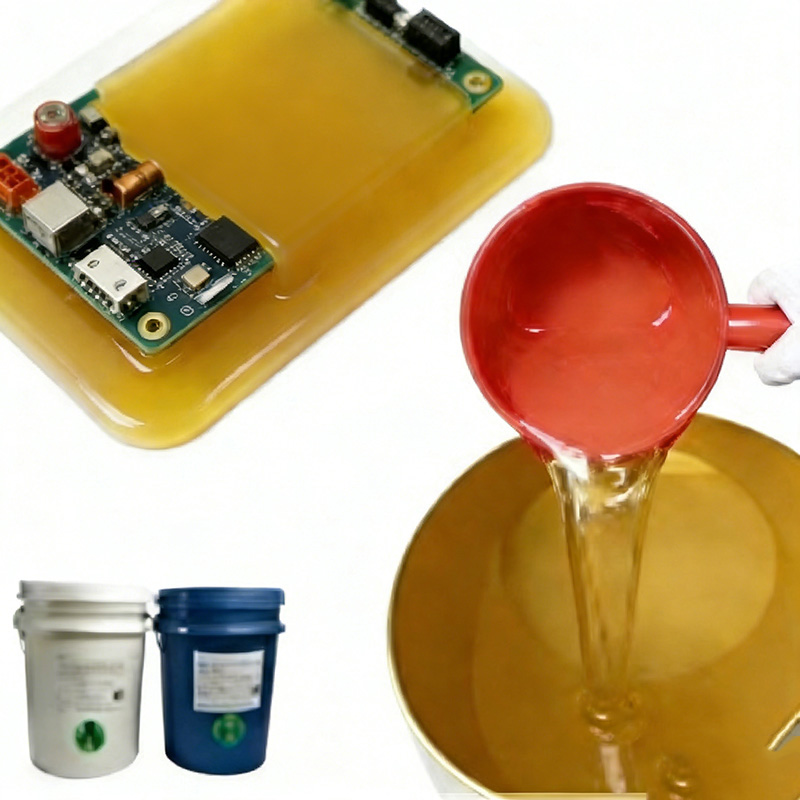

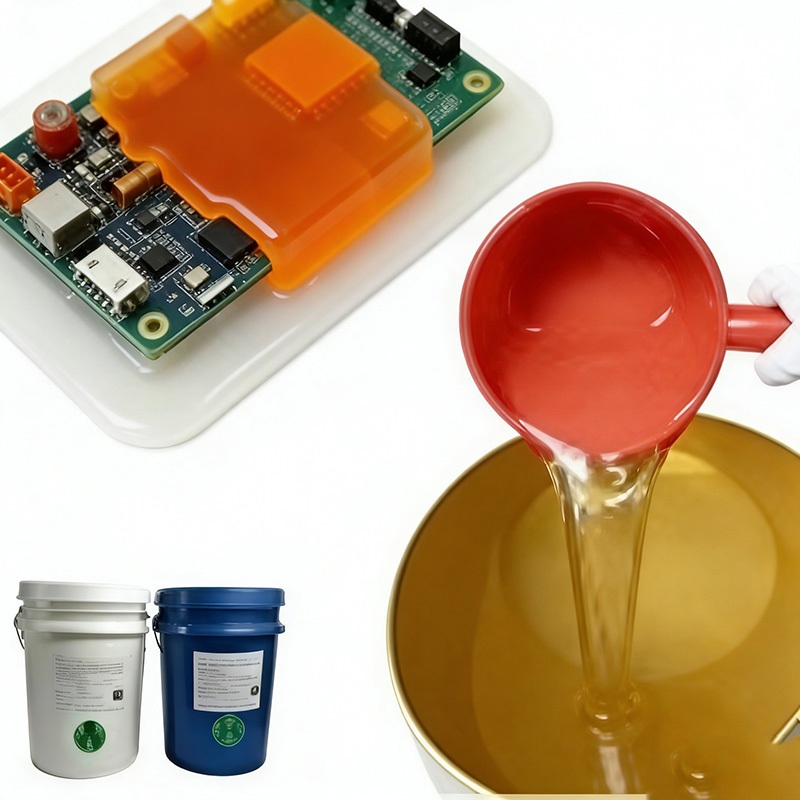

HONG YE SILICONE Electronic Potting (Model HY-9055) is a high-performance Silicone Potting Compound designed for solar junction boxes, a core Silicone raw material with excellent thermal conductivity and outdoor durability. As a premium Electronic Encapsulation Adhesive, this dual-component liquid silicone features a 1:1 weight ratio, fast room-temperature curing, and UL94-V1 flame retardancy. Fully complying with ISO, CE and RoHS standards, it provides reliable insulation, waterproofing and heat dissipation for solar junction box components, ensuring stable solar power transmission, meeting global solar energy manufacturer demands.
Product Overview
Our Electronic Potting (Model HY-9055) is a low-viscosity dual-component organic silicone potting adhesive, specially engineered for solar junction boxes—the critical connection hub of solar power systems. As a professional supplier of Thermally Conductive Potting Compound and Silicone Potting Compound, we optimize this product for outdoor solar environments: it bonds perfectly to PC, PP, ABS, PVC and various metals, with excellent insulation, waterproofing and heat dissipation. It effectively protects junction box electronics from UV radiation, extreme temperatures and moisture, ensuring long-term stable operation of solar power systems. Technical Specifications
Our Electronic Potting (Model HY-9055) has stable performance with customizable parameters; key specifications are as follows: it is a dual-component liquid silicone (A and B), both appearing as liquid with a dynamic viscosity of 3000±500. The mixing ratio of A and B components is 1:1 by weight, with an operating time of 30-120 minutes. Basic curing takes 3-5 hours, and full curing takes 12-24 hours. After curing, the hardness is 55±5 Shore A, with excellent adhesion. Thermal conductivity is ≥0.4 W(m·k), dielectric strength ≥25 KV/mm, dielectric constant 3.0~3.3 (1.2MHz), volume resistivity ≥1.0×10¹⁶ Ω·cm, and flame retardancy meets UL94-V1. Shelf life is 12 months, non-hazardous for general chemical transportation.
Product Features & Advantages
- Solar-Grade Thermal Conductivity: Efficiently dissipates heat generated by solar junction boxes during long-term outdoor operation, avoiding component overheating and ensuring stable power transmission.
- Fast Room-Temperature Deep Curing: Enables rapid deep curing at room temperature, improving production efficiency, suitable for mass production of solar junction boxes; curing speed is adjustable according to environmental conditions.
- Superior Outdoor Durability: Excellent UV resistance, weather aging resistance and temperature stability, adapting to outdoor extreme temperature fluctuations (-60℃ to 220℃) and harsh weather conditions.
- High Insulation & Flame Retardancy: UL94-V1 flame retardancy and high dielectric strength effectively prevent short circuits and fire risks; high volume resistivity ensures safe insulation of junction box electronics.
- Strong Adhesion & Waterproofing: Bonds well to various solar junction box materials (plastics and metals), forming an impermeable waterproof seal to prevent moisture intrusion and component damage.
- Environmentally Friendly & Compliant: Fully meets EU RoHS directives, non-toxic, non-hazardous, and environmentally friendly, complying with global solar industry environmental standards.
How to Use (Step-by-Step)
- Pre-Mix Preparation: Thoroughly stir Component A to mix settled fillers evenly, and shake Component B thoroughly to ensure uniform viscosity; slight stratification during storage does not affect performance after stirring.
- 1:1 Weight Mixing: Strictly mix Component A and Component B at a 1:1 weight ratio, stirring continuously until homogeneous to ensure optimal curing effect.
- Vacuum Defoaming: After mixing evenly, place the mixed adhesive in a vacuum container and defoam at 0.08MPa for 3 minutes to remove air bubbles, ensuring dense, bubble-free encapsulation.
- Curing Process: Pour the defoamed adhesive into solar junction boxes, cure at room temperature. Proceed to the next process after basic curing (3-5 hours), and ensure full curing (12-24 hours) for optimal performance; environment temperature and humidity affect curing speed.
Application Scenarios
This Electronic Potting is specifically designed for solar junction boxes, including residential, commercial and industrial solar power system junction boxes, solar panel connection boxes and solar inverter junction modules. It is also suitable for outdoor LED display potting and electronic accessories that require insulation and waterproofing. For solar energy purchasers, it enhances junction box reliability, reduces failure rates caused by heat and moisture, extends service life, lowers maintenance costs, and ensures stable solar power generation, boosting competitiveness in the global solar energy market.
Customization Options
We provide full customization for solar junction box requirements:
- Adjust curing hardness, viscosity and operating time to match different solar junction box sizes and production processes.
- Optimize thermal conductivity and UV resistance to adapt to different regional solar environments (high-temperature, strong UV areas).
- Offer flexible packaging specifications (5kg, 20kg, 25kg, 200kg) to meet mass production and supply chain needs.
- Adjust flame retardancy and insulation performance to meet stricter solar industry safety standards.
Certifications & Compliance
Our Electronic Potting meets international solar energy and electronic industry standards, holding ISO 9001, CE and RoHS certifications, and flame retardancy meets UL94-V1 standard. It fully complies with EU RoHS directives, with stable batch performance, non-toxic and environmentally friendly, undergoing strict quality testing to ensure consistency, widely trusted by global solar energy manufacturers and suppliers.
Production Process
Our production process adheres to strict solar-grade quality standards: selecting high-purity Silicone raw materials, precise mixing of A/B components, vacuum defoaming, strict viscosity and hardness testing, and sterile packaging. Each batch undergoes rigorous performance testing (thermal conductivity, insulation, flame retardancy) to ensure it meets solar junction box application requirements, demonstrating our strong production capacity and quality assurance system. FAQ
Q: Is this potting suitable for high-temperature solar environments?
A: Yes. It has excellent high-temperature resistance and thermal conductivity, efficiently dissipating heat, adapting to long-term outdoor high-temperature operation, and ensuring stable performance of solar junction boxes.
Q: How to store this potting adhesive properly?
A: Seal and store in a cool, dry place, with a shelf life of 12 months. Mixed glue should be used up at one time; stratification during storage can be solved by stirring evenly.
Q: Can it resist strong UV radiation in outdoor environments?
A: Yes. It has excellent UV resistance and weather aging resistance, not easy to yellow or degrade under long-term sun exposure, extending the service life of solar junction boxes.
Q: Is it compatible with all solar junction box materials?
A: Yes. It has excellent adhesion to PC, PP, ABS, PVC and various metals, perfectly compatible with common solar junction box materials, ensuring tight bonding and waterproof sealing.
