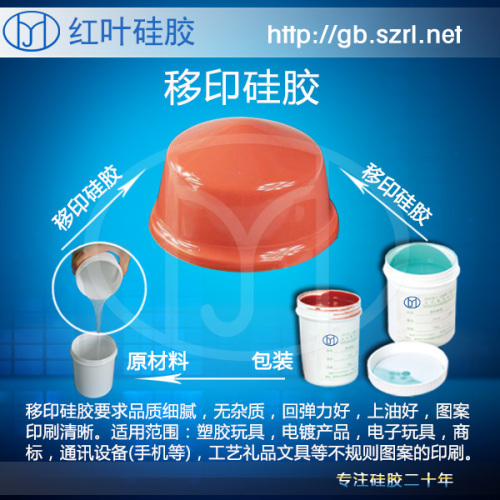

902 High Wear Resistant Long Life Pad Printing Silicone for High Volume Stationery Tools

Hongye HY-902 is a high wear resistant long life two-component room temperature vulcanized Pad Printing Silicone developed by Shenzhen Hongyejie Technology Co., Ltd. specifically for high volume continuous production, high frequency pressing products, stationery, tools, hardware and other industries requiring high wear resistance and long service life from pad printing heads. With 28±2 Shore A hardness, the highest among the four models, it features dense fine texture, outstanding wear and tear resistance, producing pads with long service life that withstand high frequency continuous pressing without rapid wear, greatly reducing pad changes, improving production efficiency and lowering overall usage cost.

HY-902 features stable ink pick-up and release, sharp clear patterns with clean edges, maintaining stable print quality even during long continuous production without pattern blur from rapid pad wear. Moderate viscosity with good fluidity ensures easy pouring and degassing, simple operation with wide process window. Multiple colors available including red, yellow, white and green standard colors. Mature stable formula with excellent batch consistency, ideal for high volume production companies requiring long pad life and batch stability.

Key Features

• 28±2 Shore A hardness, highest among four models, dense fine texture, outstanding wear resistance

• High wear resistance long life, withstands high frequency continuous pressing, service life 30% longer than standard economical type

• Excellent tear resistance, pads resist tearing and corner chipping, durable and long lasting

• Stable clear patterns during long continuous production, no pattern blur from rapid pad wear

• Uniform stable ink pick-up and release, sharp clear patterns, clean edges without burrs, reliable print quality

• Greatly reduces pad changes, improves production efficiency, reduces downtime and overall cost

• Moderate viscosity good fluidity, easy pouring automatic degassing, simple operation wide process window

• Multiple colors available, red yellow white green standard colors, meeting different production preferences

• Excellent batch consistency, mature formula, stable long-term supply quality, ideal for high volume production

• Standard 100:2 mixing ratio by weight, easy measuring for both manual and automatic dispensing

Technical Parameters

Model Color Hardness (Shore A) Viscosity (mPa.s) Working Time (min) Curing Time (h) Tensile Strength (MPa) Tear Strength (kN/m) Elongation (%) Mix Ratio (A:B) Density (g/cm3)

HY-902 R/Y/W/G 28±2 15000±2000 30-40 2-4 ≥4.0 ≥18 ≥320 100:2 1.15±0.03

HY-901 R/Y/W/G 23±2 12000±2000 30-40 2-4 ≥3.0 ≥12 ≥300 100:2 1.12±0.03

HY-912 R/Y/W/G 25±2 13000±2000 30-45 2-4 ≥3.5 ≥15 ≥350 100:2 1.13±0.03

HY-916 R/Y/W/G 16±2 10000±2000 30-40 2-4 ≥2.5 ≥10 ≥400 100:2 1.10±0.03

Note: Above are typical values, actual parameters refer to batch COA report. Test conditions: 25±2°C, 50±5% RH.

Application Scenarios

Stationery Industry High Volume High Speed Printing

The stationery industry is one of the most widespread pad printing applications, including pen barrels, pencil cases, staplers, scissor handles, rulers, sharpeners and more, with large batch sizes, high printing speeds and extremely high wear resistance requirements for pads. Stationery production typically uses multi-color pad printing machines for high speed continuous production, with one machine printing tens of thousands of pieces per day. Pads withstand high frequency continuous pressing, and standard pads quickly wear out causing pattern blur, requiring frequent replacement that severely impacts production efficiency.

Hongye HY-902 high wear resistant long life pad printing silicone is designed for stationery industry high volume high speed printing. With 28 Shore A hardness, dense fine texture and excellent wear and tear resistance, pads withstand high frequency continuous pressing without rapid wear, with service life 30% longer than standard economical pads, greatly reducing pad changes and downtime while improving efficiency. Stable ink transfer maintains sharp clear patterns even during long continuous high speed production. Multiple colors allow matching stationery product colors to avoid pad color transfer contamination.

Tools and Small Hardware Industry Marking

Tools and small hardware products include screwdrivers, wrenches, pliers, hammers, tape measures, knives, locks, hardware fittings and more, mostly made of metal or hard plastic with high surface hardness, some with oil or anti-rust coating on the surface, requiring high wear resistance and oil resistance from pad printing heads. Tools and hardware products typically require printing brand logos, model specifications, scale markings, demanding high pattern clarity and wear resistance, with relatively large batch sizes requiring durable long-lasting pads.

Hongye HY-902 performs excellently in tools and small hardware industry. High hardness dense wear resistant texture withstands high frequency pressing on metal and hard plastic surfaces without rapid wear, with good oil resistance against oil and anti-rust coating erosion. Excellent tear resistance prevents pads from tearing or corner chipping from sharp object edges. Sharp clear patterns deliver good brand logo and model specification printing results with clear durable markings. Long service life reduces replacement frequency and lowers overall cost, especially suitable for tools and hardware industry high volume continuous production.

Operating Instructions

Step 1 Pad Mold Preparation

Thoroughly clean the pad mold, ensuring the surface is free of dust, oil, residual silicone and other contaminants. Wipe with alcohol or specialized cleaner, air dry, then apply release agent evenly. Use dedicated silicone release agent or petroleum jelly, thin even coat without accumulation. Allow 5-10 minutes to fully dry. Place mold on a flat level surface.

Step 2 Component A Preparation

Before pouring, stir component A base rubber thoroughly for 1-2 minutes, as fillers may settle during storage. Scrape bucket walls and bottom to ensure complete uniformity. If taking a small portion from a large bucket, stir again after taking. Use moderate stirring speed to avoid excessive air bubbles.

Step 3 Weighing and Mixing

Accurately weigh A and B at 100:2 ratio by weight using electronic scale, error within ±5%. Mix thoroughly for 3-5 minutes, continuously scraping container walls and bottom to ensure complete uniform blending. Uniform mixing indicated by completely consistent color without streaks or blocks.

Step 4 Pouring and Degassing

Slowly pour mixed silicone into prepared mold from one side, allowing natural flow to fill, avoiding direct impact bubbles. Pour to about 80% full. If vacuum available, vacuum degas at -0.09 MPa for 2-3 minutes until no more bubbles emerge. Without vacuum, rest 5-10 minutes for natural bubble rise, or use low heat gun to sweep surface.

Step 5 Curing and Demolding

After degassing, cover board and cure at room temperature 25°C for 2-4 hours before demolding. Curing time temperature dependent, lower temperatures extend time, higher temperatures shorten. For faster curing, heat at 60°C for 30-60 minutes, but temperature must not exceed 100°C. After curing, gently remove pad from mold, do not pull forcefully. Rest 24 hours before use for full property stabilization.

Step 6 Use and Maintenance

Before use, gently wipe pad surface with alcohol to remove dust and oil. For first use, test print on waste paper several times to fully ink up surface. If residual ink or paper dust found during printing, gently remove with clean non-woven fabric or adhesive tape, do not repeatedly wipe with solvent as this accelerates aging. When not in use, wrap surface with plastic film, store in cool dry place away from sunlight and dust. Store pads for different products separately to avoid cross-contamination.

Selection Guide

HY-901 Economical General-Purpose 23 Shore A: Entry-level preferred, simple operation wide process window, high cost-performance, ideal for newcomers, small batch multi-product frequent changeover, sampling and routine production. Choose for cost-sensitive SMEs and entry-level production.

HY-902 High Wear Resistant Long Life 28 Shore A: High wear resistance long life, highest hardness, excellent wear and tear resistance, ideal for high volume continuous production, high frequency pressing, hard flat surface printing, stationery and tools requiring high wear resistance. Choose when pad service life is the primary requirement.

HY-912 Multi-Color Eco General-Purpose 25 Shore A: Export eco general-purpose, RoHS REACH certified, multiple colors stable batch quality, golden general-purpose hardness handling flat and small curvature surfaces, ideal for export toys, gifts, electronics, stationery requiring eco-certification. Choose when eco-certification and multiple colors are needed.

HY-916 Extra-Soft 16 Shore A: Extra-soft large curvature specialized, low hardness strong deformation, fully conforms to large radius curved, deep concave and irregular surfaces, ideal for spherical, humanoid, animal shape large curvature toys, irregular gifts. Choose when product curvature is large and irregularity high.

Recommended Application

High wear resistant long life pad printing head for stationery and tools industry high volume high speed printing

Quality and Compliance

Every batch of Hongye HY-902 is produced under ISO 9001 certified quality management system, with pre-shipment testing of viscosity, mixing ratio, curing time, hardness, tensile strength, tear strength, elongation, color and density. Each shipment includes COA analysis report. Hongye Silicone has focused on liquid silicone R&D and manufacturing since 2005, with 20,000 sqm modern factory in Shenzhen producing over 500 tons monthly, supplying customers in more than 60 countries and serving over 10,000 enterprise customers. 12 months shelf life sealed below 25°C.

Packaging

Standard packaging includes 1kg trial kit approx 980g A plus 20g B, 5kg kit, 20kg drum, 25kg drum and 200kg drum. Components A and B packaged separately, A is base rubber, B is curing agent, mix at ratio before use. Custom packaging and private label available for orders above 200kg. Each package labeled with product name, model, batch number, production date, expiration date, mixing ratio, net weight and safety info. Iron drums with inner plastic bags, good sealing preventing leakage and moisture.

Competitive Advantages

Hongye HY-902 stands out in global pad printing silicone market through formulation technology, vertical integration and customer-centric service. We operate self-owned silicone polymer synthesis and compounding lines, fully controlling raw material quality and batch consistency. 20,000 sqm Shenzhen factory produces over 500 tons monthly. This scale makes our prices typically 30%-50% lower than imported premium pad printing silicone with comparable performance. Standard models in stock, 3-5 working day delivery. Technical sales engineers provide on-site dispensing trial production, pad mold design review and custom formula service. OEM customers enjoy private label, neutral packaging, multilingual COA and exclusive batch traceability.

Ordering and Logistics

To order Hongye HY-902, contact Hongye sales with model, quantity, color, destination country and shipping method. We accept T/T bank transfer, PayPal for sample orders, and Alibaba Trade Assurance orders. 1kg trial kit available for first cooperation. Standard packaging ships in 3-5 working days after payment. We ship worldwide via DHL, FedEx, UPS, sea freight for bulk goods. Condensation cure pad printing silicone is non-hazardous under most shipping regulations, simplifying international logistics. Each shipment includes commercial invoice, packing list, COA and SDS.

Technical Support and Custom Service

Hongye has a dedicated technical service team of silicone chemists and application engineers with average industry experience over 10 years. We provide full lifecycle support including initial model selection based on product shape and printing conditions, on-site or remote dispensing trial production, pad mold design review, curing curve optimization, printing parameter adjustment, failure analysis and continuous quality improvement. For customers with special requirements, our R&D center develops custom formulas including hardness adjustment 10-40 Shore A, Pantone color matching, accelerated or delayed curing, working time adjustment. Custom development from requirement confirmation to sample shipment typically 7-14 working days.

Notes

Use polyethylene, nylon or nitrile gloves, do not use natural latex gloves. Avoid contact with sulfur-containing substances, amines, phosphorus compounds, tin-cure silicone and PVC, as these may inhibit curing catalyst or affect reaction. Use calibrated scale to accurately weigh A and B at 100:2 by weight, mix thoroughly 3-5 minutes scraping container walls and bottom. Heat curing temperature must not exceed 100°C. Maintain good ventilation. Component B has mild irritation, avoid direct skin and eye contact, rinse with plenty water if contact occurs. Seal immediately after use to avoid moisture absorption or solvent evaporation.

Storage

Store in sealed containers below 25°C in dry ventilated place, away from direct sunlight, sulfur-containing substances, amines, food and strong chemicals. Shelf life 12 months from production date. Seal immediately after taking material. Refrigeration at 5-15°C extends shelf life, warm to room temperature before opening to avoid condensation. Store A and B separately, do not mix during storage. Storage area away from fire and heat sources with good ventilation.

FAQ

Q: What is the difference between 902 and 901? How to choose?

A: 901 is economical general-purpose with 23 Shore A, high cost-performance, simple operation, ideal for entry-level production, small batch multi-product and cost-sensitive companies. 902 is high wear resistant long life with 28 Shore A, better wear and tear resistance, longer service life, ideal for high volume continuous production, high frequency pressing products, stationery and tools requiring high wear resistance. Choose 902 if high output, frequent pad changes, high pad life requirement; choose 901 for small batch multi-product or cost sensitivity.

Q: How long does a 902 pad last?

A: 902 high wear resistant pad service life depends on printing frequency, product material, ink type, cleaning method and maintenance, typically 20,000 to 50,000 prints in routine high volume high speed production, 30% longer than standard economical pads. In stationery and tools industry high frequency continuous production, check pad surface condition daily, replace when wear is severe or patterns become blurry. Proper cleaning and maintenance effectively extends service life.

Q: Will higher hardness pads cause unclear printing or damage products?

A: 902 at 28 Shore A, although the highest among four models, is still in the soft silicone category and will not damage product surfaces. Higher hardness dense fine texture provides more stable ink transfer and sharper clearer patterns, especially suitable for fine printing on hard flat surfaces. However, for large radius curved surfaces or soft easily deformable products, higher hardness pads may have less conformability than extra-soft 916, so choose appropriate hardness based on product shape. 902 performs best on flat and small curvature hard products.
