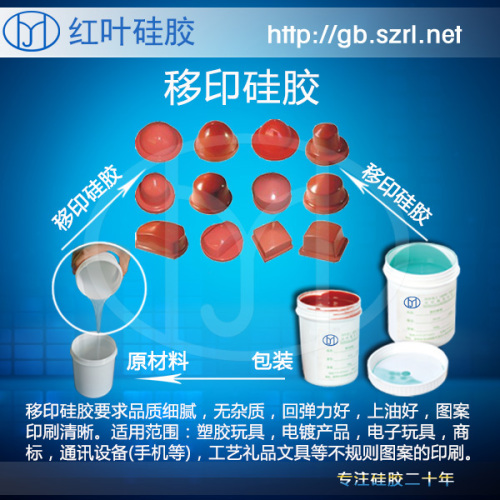

High Wear Resistant Long Life Pad Printing Silicone for Mass Production

Hongye HY-902 is a high wear resistant long life two component RTV Pad Printing Silicone developed by Shenzhen Hongyejie Technology Co., Ltd. for mass continuous production. With 28±2 Shore A hardness, it is the hardest and most wear resistant model among four series, with tensile strength ≥4.0MPa and tear strength ≥18kN/m. The pad is strong and durable with excellent abrasion and tear resistance, providing much longer service life than standard models.

Mass production facilities require long pad life. Frequent pad replacement causes production interruption and cost increase. HY-902 high wear model solves this with high hardness durable material maintaining stable performance during high frequency pressing, delivering clear consistent patterns and significantly extending pad life. It reduces replacement frequency, improves efficiency and lowers cost. Stable ink pickup and transfer, sharp clear patterns, ideal for stationery, tools, electronics and hardware flat printing. Available in red, yellow, white and green. Standard 100:2 mixing ratio. Mature stable formula with consistent batch quality.

Key Features

• 28±2 Shore A hardness, hardest among four models, strong and wear resistant

• Tensile strength ≥4.0MPa, tear strength ≥18kN/m, excellent tear resistance

• High wear resistance and long service life, much longer than standard models

• Specially designed for mass continuous production, high frequency pressing, hard flat printing

• Sharp clear patterns, stable performance and consistent printing during long runs

• Effectively reduces pad replacement frequency, improves efficiency, lowers cost

• Available in red, yellow, white and green four standard colors

• Standard 100:2 mixing ratio, easy operation for manual and automatic dispensing

Technical Specifications

表格

Model Color Hardness (Shore A) Viscosity (mPa.s) Working Time (min) Curing Time (h) Tensile Strength (MPa) Tear Strength (kN/m) Elongation (%) Mix Ratio (A:B) Density (g/cm3)

HY-902 R/Y/W/G 28±2 15000±2000 30-40 2-4 ≥4.0 ≥18 ≥320 100:2 1.15±0.03

HY-912 R/Y/W/G 25±2 13000±2000 30-45 2-4 ≥3.5 ≥15 ≥350 100:2 1.13±0.03

HY-901 R/Y/W/G 23±2 12000±2000 30-40 2-4 ≥3.0 ≥12 ≥300 100:2 1.12±0.03

HY-916 R/Y/W/G 16±2 10000±2000 30-40 2-4 ≥2.5 ≥10 ≥400 100:2 1.10±0.03

Note: Above are typical values, actual parameters subject to each batch COA report. Test conditions: temperature 25±2°C, relative humidity 50±5%.

Application Scenarios

Stationery and Tools Mass Printing

Stationery and tools industry includes pens, rulers, erasers, pencil cases, screwdrivers, wrenches, pliers, hammers, knives etc. These products have high production volume and high printing frequency, requiring excellent pad wear resistance and long service life. Standard pads wear quickly under high frequency pressing, requiring frequent replacement.

Hongye HY-902 high wear long life Pad Printing Silicone is specially designed for stationery and tools mass printing. With 28 Shore A hardness, tensile strength ≥4.0MPa and tear strength ≥18kN/m, it provides excellent abrasion and tear resistance. The pad is strong and durable, maintaining stable performance and clear consistent patterns during high frequency pressing and mass production, with much longer service life than standard models. Using HY-902 significantly reduces replacement frequency, minimizes production interruption, improves efficiency and lowers overall cost.

Electronic Products and Hardware Continuous Production

Electronic products and hardware industry includes phone cases, computer accessories, remote controls, buttons, connectors, metal housings, hardware parts etc. These products usually have hard flat or slightly curved surfaces with high printing precision requirements and large production batches.

Hongye HY-902 high wear pad printing silicone performs excellently in electronic products and hardware continuous production. The high hardness durable material maintains sharp clear patterns and stable consistent printing quality during long continuous production runs, reducing quality fluctuation caused by pad wear. Uniform ink pickup and transfer delivers complete pattern reproduction, ideal for high precision printing on hard flat and slightly curved surfaces. Long pad life reduces replacement frequency and downtime, improving production efficiency.

Operating Instructions

Step 1 Pad Mold Preparation: Thoroughly clean the pad mold, wipe with alcohol and apply mold release agent evenly, leave 5 to 10 minutes to dry. Place mold on a level stable surface.

Step 2 Component A Preparation: Stir component A base rubber thoroughly for 1 to 2 minutes before pouring to ensure uniform color and filler distribution, scrape bucket walls and bottom.

Step 3 Weighing and Mixing: Accurately weigh A and B at 100:2 ratio by weight using electronic scale, within ±5% tolerance. Mix thoroughly for 3 to 5 minutes, scraping container walls and bottom to ensure complete uniform mixing.

Step 4 Pouring and Degassing: Slowly pour mixed silicone from one side of the mold, let it flow naturally to fill. Fill to about 80 percent. Use vacuum at negative 0.09MPa for 2 to 3 minutes if available, or let sit 5 to 10 minutes for natural bubble release.

Step 5 Curing and Demolding: After degassing, cover the mold and cure at room temperature 25°C for 2 to 4 hours. For faster curing, heat at 60°C for 30 to 60 minutes, temperature not exceeding 100°C. Gently remove the pad, let rest 24 hours before use.

Step 6 Usage and Maintenance: Wipe pad surface with alcohol before use. Do several test prints first to condition the surface. Gently remove residual ink with clean nonwoven cloth or tape. Wrap with plastic film when not in use.

Selection Guide

HY-901 Economy 23A: Entry level choice, easy operation and cost effective, ideal for beginners, small batch multi variety production, sampling and regular production.

HY-902 High Wear 28A: Highest wear resistance and longest service life, ideal for mass continuous production, high frequency pressing, hard flat surface printing, stationery and tools industry.

HY-912 Eco Friendly 25A: Export oriented general purpose model, RoHS and REACH certified, multiple colors with stable batch quality, ideal for export toys, gifts, electronics, stationery requiring eco certification.

HY-916 Ultra Soft 16A: Ultra soft for large curved surfaces, low hardness with high deformation capability, ideal for spherical, humanoid, animal shaped large curved toys and irregular gifts.

Recommended Application

High wear long life pad printing head for mass continuous production and high frequency pressing

Quality and Compliance

Each batch of Hongye HY-902 is produced under ISO 9001 certified quality management system. Tested for viscosity, mixing ratio, curing time, hardness, tensile strength, tear strength, elongation, color and density before shipment. Each batch comes with COA report. Hongye Silicone has focused on liquid silicone since 2005, 20000 square meter Shenzhen factory producing over 500 tons monthly, supplied to over 60 countries. Shelf life 12 months sealed below 25°C.

Packaging Specifications

Standard packaging includes 1kg trial kit, 5kg kit, 20kg bucket, 25kg bucket and 200kg drum. Components A and B packed separately. Custom packaging and OEM service available for orders above 200kg. Each package labeled with product name, model, batch number, production date, expiry date, mixing ratio, net weight and safety information.

Competitive Advantages

Hongye HY-902 stands out with formulation technology, vertical integration and customer focused service. We own silicone polymer synthesis and compounding production lines, fully controlling raw material quality and batch consistency. Our 20000 square meter Shenzhen factory produces over 500 tons monthly, prices typically 30 to 50 percent lower than imported premium pad printing silicone with comparable performance. Standard models in stock for 3 to 5 working day delivery. Technical sales engineers provide on site dispensing trial production, pad mold design review and custom formulation service. OEM customers enjoy private label, neutral packaging, multilingual COA and exclusive batch traceability.

Ordering and Logistics

To order Hongye HY-902, contact sales with model, quantity, color, destination country and shipping method. We accept T/T telegraphic transfer, PayPal for sample orders and Alibaba trade assurance orders. 1kg trial kit available for first time cooperation. Standard packaging shipped within 3 to 5 working days after payment. DHL, FedEx, UPS worldwide shipping, sea freight available for bulk cargo. Condensation cure pad printing silicone is non hazardous under most shipping regulations. Each shipment comes with commercial invoice, packing list, COA and SDS.

Technical Support and Custom Service

Hongye has a dedicated technical service team of silicone chemists and application engineers with average industry experience over 10 years. We provide full lifecycle support including model selection guidance, on site or remote dispensing trial production, pad mold design review, printing parameter optimization, failure analysis and continuous quality improvement. For customers with special requirements, our R&D center can develop custom formulations including hardness adjustment, Pantone color matching, curing speed adjustment etc. Custom development typically takes 7 to 14 working days from requirement confirmation to sample shipment.

Precautions

Use polyethylene, nylon or nitrile gloves, do not use natural latex gloves. Avoid contact with sulfur containing substances, amines, phosphorus compounds, tin cure silicone and PVC as these may inhibit cure. Use calibrated scale for accurate 100:2 weighing, mix thoroughly for 3 to 5 minutes. Heat curing temperature not exceeding 100°C. Maintain good ventilation. Component B has mild irritation, avoid direct contact with skin and eyes. Seal containers immediately after use.

Storage

Store in sealed containers below 25°C in dry ventilated area, avoid direct sunlight, keep away from sulfur containing substances, amines, food and strong chemicals. Shelf life 12 months from production date. Seal immediately after taking material. Refrigeration at 5 to 15°C extends shelf life, warm to room temperature before opening to avoid condensation. Store components A and B separately.

FAQ

Q: How long does HY-902 high wear pad last? How much longer than other models?

A: HY-902 high wear pad service life depends on printing frequency, product material, ink type, cleaning method and maintenance. For regular mass production, it typically lasts 30000 to 80000 prints, 2 to 3 times longer than standard models. Proper cleaning and maintenance can further extend service life. For mass continuous production facilities, using HY-902 significantly reduces pad replacement frequency and lowers overall cost.

Q: HY-902 has high hardness, will it affect ink pickup and pattern clarity?

A: HY-902 at 28 Shore A is the hardest among four models but still within reasonable pad printing silicone hardness range, it does not affect ink pickup and pattern clarity. On the contrary, higher hardness pads deliver sharper pattern edges and higher printing precision, with better pattern stability during extended use. Only large curved surface products require lower hardness pads like HY-916. For flat and slightly curved products, HY-902 works perfectly with better wear resistance and longer life.

Q: How to choose between HY-902 and HY-912?

A: HY-902 is high wear long life model with 28A hardness, best abrasion and tear resistance, longest pad life, ideal for mass continuous production, high frequency pressing, facilities with high pad life requirements. HY-912 is multi color eco friendly general purpose model with 25A hardness, RoHS and REACH certified, multiple colors with stable batch quality, ideal for export companies. If products export requiring eco certification, choose HY-912. If domestic sales or no eco certification needed but high production volume, choose HY-902. Both suitable for flat and slightly curved products.
