HONG YE SILICONE Marine Electronic Potting Silicone Compound (Model HY-9325) is a professional two-component RTV silicone tailored for marine electronic protection. It is low-viscosity, cures deeply and quickly at room temperature, integrating superior salt-fog resistance, corrosion resistance, waterproof and insulation performance. As a core product matching our liquid silicone, RTV 2 Silicone Rubber, Industrial mold silicone rubber, Pad Printing Silicone and Silicone Encapsulant, it adheres well to PC, PP, metals and marine electronic substrates, meets UL94-V1 flame retardancy and EU ROHS, with 1-year shelf life and customizable parameters for bulk marine electronic procurement.
Product Overview
Our Marine Electronic Potting Silicone Compound is a high-performance two-component room-temperature vulcanizing (RTV) potting material, specially engineered for harsh marine environments, a key part of HONG YE SILICONE’s full silicone product matrix. Also called encapsulation silicone, electronic silicone or marine potting glue, it is optimized for marine electronic pain points—strong salt-fog, high humidity, corrosion and temperature fluctuations. It cures into a dense protective layer, ensuring long-term stable operation of marine electronic components, far exceeding ordinary Electronic Potting Compound in marine environment adaptability.
Product Features & Advantages
1. Marine-specific corrosion & salt-fog resistance: Excellent resistance to marine salt fog, seawater corrosion and humid air, effectively isolating marine electronic components from seawater erosion and salt crystallization damage, extending service life in marine environments.
2. Superior waterproof & insulation performance: Low viscosity, good fluidity, forms a seamless waterproof barrier after curing; volume resistivity ≥1.0×10¹⁶ Ω·cm, dielectric strength ≥25 kV/mm, ensuring safe operation of marine electronics in humid conditions.
3. Fast room-temperature curing & marine-friendly: Rapid deep curing at room temperature (3-5 mins initial, 24 hrs full), no need for high-temperature equipment, adapting to marine equipment maintenance and on-site production needs.
4. UL94-V1 flame retardancy & EU ROHS compliance: Meets strict flame retardant standards to reduce marine fire risks, fully complies with EU environmental directives, supporting global marine electronic market access.
5. Strong adhesion & wide compatibility: Excellent bonding performance to PC, PP, ABS, PVC and marine-used metals, ensuring tight adhesion to marine circuit boards and modules without peeling in harsh marine conditions.
Technical Specifications
It is a two-component marine potting silicone with Component A and B both being viscous liquids; Component A has a viscosity of 500±100 cps. Mixed at 1:1 weight ratio, operable time is 30-120 minutes, initial curing time 3-5 minutes, full curing time 24 hours (affected by ambient temperature and humidity). After curing, it reaches Shore A hardness 25±2, thermal conductivity ≥0.2 W(m·K), dielectric constant 3.0～3.3 (1.2MHz), volume resistivity ≥1.0×10¹⁶ Ω·cm, UL94-V1 flame retardancy. Other models and customizable parameters (hardness, viscosity, curing speed) are available on request.
How to Use
1. Preparation: Fully stir Component A to mix settled black pigment evenly; shake Component B thoroughly to ensure uniform material composition without stratification, critical for marine waterproof performance.
2. Mixing: Blend Component A and B strictly according to 1:1 weight ratio, stir thoroughly to guarantee consistent marine corrosion resistance and curing performance.
3. Deaeration (Optional): Place the mixed liquid into a vacuum container, deaerate for 3 minutes under 0.08MPa to remove air bubbles, ensuring a dense, bubble-free protective layer for marine electronics.
4. Potting & Curing: Pour the treated silicone onto marine electronic components, place at room temperature for curing. Proceed to the next process after initial curing, and ensure 24 hours for full curing to achieve optimal marine protection.
Application Scenarios

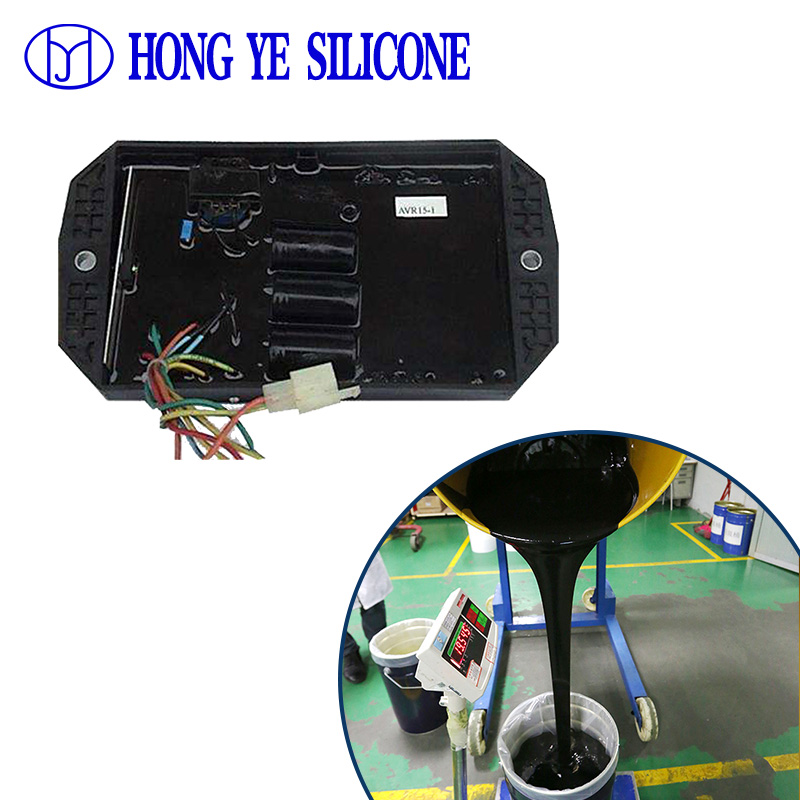

Specially designed for potting and protection of marine electronic components, including marine circuit boards, marine electrical modules, shipborne LED displays, marine sensors and marine communication equipment. It is suitable for marine electronic insulation, waterproofing, sealing and fixation, effectively resisting salt fog, seawater corrosion and humid marine environments. It reduces marine electronic failure rates and after-sales costs, becoming an essential material for marine electronic manufacturing, ship maintenance and marine equipment industries.
Certifications and Compliance
HONG YE SILICONE holds ISO9001 quality management system certification, CE and UL certifications. Our Marine Electronic Potting Silicone Compound (HY-9325) fully complies with EU ROHS environmental directives and UL94-V1 flame retardant standards, meets global marine electronic material quality and safety requirements, ensuring smooth import and reliable application in international marine projects.
Customization Options
We provide professional OEM customization services for marine applications. According to customers’ marine electronic types and harsh environment needs, we can customize key parameters such as cured hardness, viscosity, operable time and curing speed. We also support formula optimization to enhance salt-fog and corrosion resistance, adapting to diverse bulk marine electronic procurement needs.
Production Process
The product undergoes strict multi-link quality control: high-quality marine-grade Silicone raw materials inspection → precise formula mixing (optimized for salt-fog resistance) → automated production and filling → pre-production sample marine environment testing → full inspection of finished products before shipment. Our professional QC team monitors the whole process, ensuring consistent marine protection performance of each batch.
FAQ
Q1: What packaging specifications are available?
A1: Iron drums (5kg, 20kg, 25kg, 200kg) and plastic drums (20kg/barrel), suitable for small-batch testing and large-batch marine electronic production.
Q2: What is the shelf life and storage method?
A2: 1-year shelf life; store in sealed containers in a cool, dry place; stratified colloid can be stirred evenly before use, no impact on marine protection performance.
Q3: Is it suitable for long-term immersion in seawater?
A3: Yes, it has excellent seawater corrosion resistance, can withstand long-term marine environment immersion without losing waterproof and insulation performance.
Q4: Is it a hazardous material for marine transportation?
A4: Non-hazardous, can be transported as general chemicals, complying with international and marine transportation standards.
Q5: Can it be customized for extreme marine temperature conditions?
A5: Yes, we can adjust the formula to enhance high/low temperature adaptability, adapting to extreme marine climate conditions.
