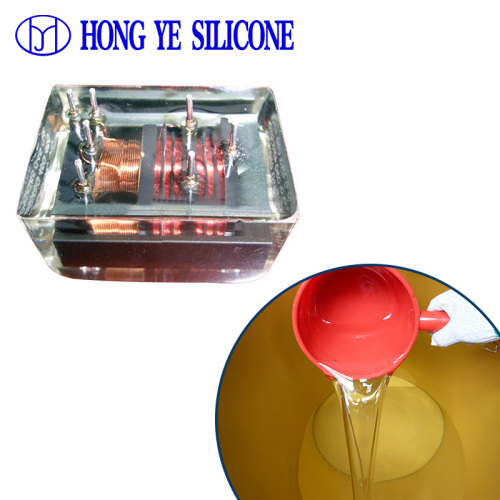

HONG YE SILICONE Battery Module Electronic Potting Silicone Compound (Model HY-9055) is a high-performance two-component low-viscosity silicone, specially engineered for battery module protection. Mixed at 1:1 weight ratio, it cures deeply and quickly at room temperature, featuring excellent thermal conductivity (≥0.4 W(m·k)), high-voltage insulation and leak-proof performance. As a core product matching our liquid silicone, RTV 2 Silicone Rubber, Industrial mold silicone rubber, Pad Printing Silicone and Silicone Encapsulant, it adheres well to PC, PP, metals and battery module substrates, meets UL94-V1 flame retardancy and EU ROHS, with 12-month shelf life, customizable parameters and multiple packaging options for bulk battery module production.
Product Overview
Our Battery Module Electronic Potting Silicone Compound is a professional potting material tailored for battery module protection, a key part of HONG YE SILICONE’s full silicone product matrix. Model HY-9055 is a two-component organic silicone sealant with low viscosity, designed to solve battery module pain points—heat accumulation, leak-proof risk, high-voltage safety and component loosening. It is liquid before mixing (Component A and B are both liquid), cures into a dense, high-adhesion protective layer, forming a reliable insulation and heat-dissipating system to ensure stable, safe operation of battery modules, far exceeding ordinary Electronic Potting Compound in battery module application adaptability. Product Features & Advantages
1. Battery module-specific thermal conductivity: Thermal conductivity ≥0.4 W(m·k), efficiently dissipates heat generated by battery cells during charging and discharging, balances internal temperature of battery modules, reduces thermal runaway risk and extends battery service life.
2. Superior high-voltage insulation & flame retardancy: Volume resistivity ≥1.0×10¹⁶ Ω·cm, dielectric strength ≥25 KV/mm, effectively resisting high-voltage breakdown; meets UL94-V1 flame retardant grade, further ensuring battery module safety in extreme conditions.
3. Leak-proof & strong adhesion: Low viscosity with good fluidity, fills gaps between battery cells and components seamlessly after potting; excellent adhesion to battery module substrates (PC, PP, metals), forming a leak-proof barrier to prevent electrolyte leakage.
4. Gentle curing & production-friendly: Room-temperature curing (full curing 12-24 hours, basic curing 3-5 hours), no exotherm or corrosion to fragile battery components; curing effect is affected by temperature and humidity, adaptable to automated battery module production lines.
5. Easy operation & cost-saving: 1:1 weight mixing ratio (easy to measure), optional deaeration at 0.08MPa for 3 minutes ensures bubble-free potting; mixed glue should be used at one time to avoid waste, reducing procurement and production costs.
Technical Specifications (Model HY-9055)
This product is a two-component battery module potting silicone, with Component A and B both being liquid; Component A has a dynamic viscosity of 3000±500. The mixing ratio is 1:1 by weight; operable time is 30-120 minutes, basic curing time is 3-5 hours, and full curing time is 12-24 hours. After curing, it reaches Shore A hardness 55±5, with excellent adhesion, thermal conductivity ≥0.4 W(m·k), dielectric strength ≥25 KV/mm, dielectric constant 3.0~3.3 (1.2MHz), volume resistivity ≥1.0×10¹⁶ Ω·cm, and UL94-V1 flame retardancy. Other models and customizable parameters (hardness, viscosity, operation time) are available on request.
How to Use
1. Preparation: Fully stir Component A in its container to mix settled fillers evenly; shake Component B thoroughly to ensure uniform material composition without stratification, critical for stable thermal conductivity and leak-proof performance.
2. Mixing: Blend Component A and B strictly according to 1:1 weight ratio, stir thoroughly to guarantee consistent insulation, thermal conductivity and curing performance for battery modules.
3. Deaeration (Optional): After mixing evenly, place the mixed liquid into a vacuum container and deaerate for 3 minutes under 0.08MPa to remove air bubbles, avoiding heat accumulation and insulation failure caused by bubbles.
4. Potting & Curing: Pour the treated silicone onto battery modules, covering gaps between cells and components; place at room temperature for curing. Proceed to the next process after basic curing, and ensure 12-24 hours for full curing to achieve optimal protection effect.
Application Scenarios

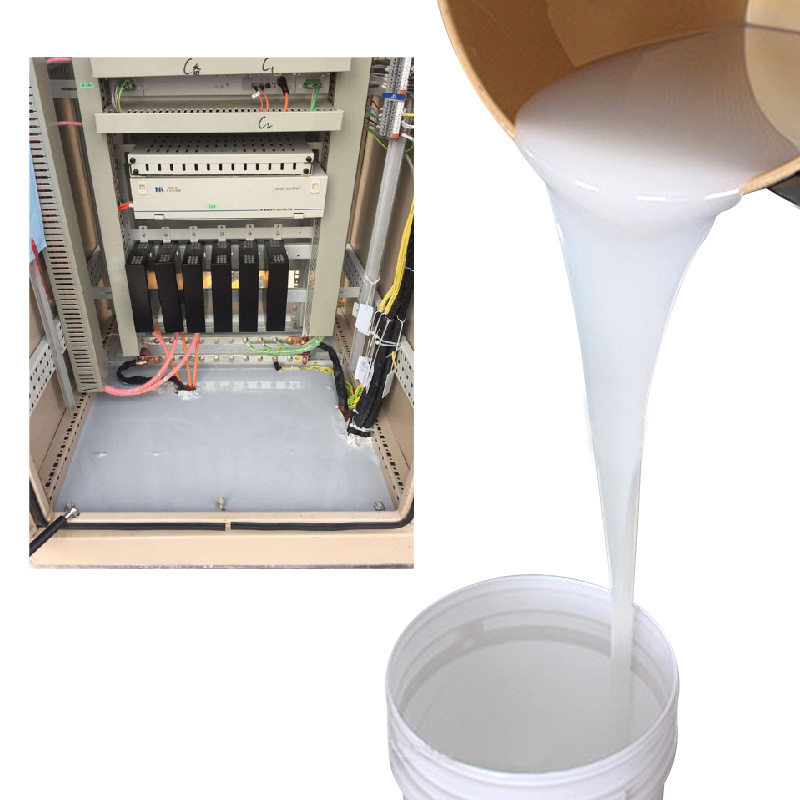

Widely used for potting, insulation, sealing and fixing of battery modules, including new energy vehicle battery modules, energy storage battery modules, consumer electronics battery packs, and other battery-related electronic components. It is also suitable for outdoor LED display potting, electronic accessories insulation and waterproofing, widely applied in new energy, consumer electronics and LED industries. It protects battery modules from heat, moisture, leakages and external impact, reducing failure rates, ensuring safe operation and enhancing product market competitiveness.
Certifications and Compliance
HONG YE SILICONE holds ISO9001 quality management system certification, CE and UL certifications. Our Battery Module Electronic Potting Silicone Compound (HY-9055) fully complies with EU ROHS environmental directives, UL94-V1 flame retardant standards and international battery module material safety standards, meeting the quality and safety requirements of global battery markets, facilitating smooth import and reliable application in international new energy projects.
Customization Options
We provide professional OEM customization services focused on battery module protection needs. According to customers’ battery module types (new energy vehicle, energy storage) and working environments, we can customize key parameters such as cured hardness, viscosity, operable time and curing speed, optimizing thermal conductivity and leak-proof performance to meet personalized bulk procurement needs of battery manufacturers.
Production Process
The product undergoes strict multi-link quality control: high-quality Silicone raw materials inspection → precise formula mixing (optimized for battery module thermal conductivity and leak-proof performance) → automated production and filling → pre-production sample performance testing (targeting battery working scenarios) → full inspection of finished products before shipment. Our professional QC team monitors the whole process, ensuring consistent battery module protection performance of each batch. FAQ
Q1: What packaging specifications are available? A1: 5kg, 20kg, 25kg and 200kg, suitable for small-batch battery module sample testing and large-batch mass production.
Q2: What is the shelf life and storage method? A2: 12-month shelf life; store in sealed containers in a cool, dry place; mixed glue should be used up at one time; stratified colloid can be stirred evenly before use, no impact on performance.
Q3: Is it suitable for new energy vehicle battery modules? A3: Yes, it has excellent thermal conductivity, leak-proof and flame retardant performance, adapting to the harsh working environment of new energy vehicle battery modules, ensuring safe and stable operation.
Q4: Is it a hazardous material for transportation? A4: Non-hazardous, can be transported as general chemicals, complying with international transportation standards for battery production materials.
Q5: Can it prevent battery electrolyte leakage? A5: Yes, it cures into a dense, high-adhesion protective layer with excellent leak-proof performance, effectively isolating battery electrolytes and avoiding leakage damage.
