HY-912 is a condensation cure two component room temperature vulcanizing silicone specially engineered for multi color overprinting and fine pattern printing. Component A is a flowable silicone liquid and component B is the curing agent, mixed at 100:2 to 100:3 ratio and cured at room temperature to form flexible pad printing heads.
The key advantage of HY-912 is its high tear strength of 25±2 kN/m, ranking among the highest in the product range. Pads made from HY-912 resist tearing during repeated printing cycles, delivering long service life. With tensile strength 4.0 MPa and elongation 340%, the pads offer excellent resilience and conform tightly to irregular curved surfaces for clear complete pattern transfer.
Viscosity is 32000±2000 mPa.s with moderate flowability facilitating bubble removal during pouring. Working time 30 to 40 minutes and curing time 3 to 4 hours enable efficient production. HY-912 is widely used for multi color overprinting and fine pattern printing on plastic toys, electronic housings, communication devices, craft gifts and stationery.
Core Features
• Tear strength 25±2 kN/m for durable tear resistant pads
• Tensile strength 4.0 MPa with excellent resilience
• Elongation 340% conforms to irregular curved surfaces
• Consistent ink pickup and clean release for multi color printing
• Viscosity 32000±2000 mPa.s easy to degas
• Working time 30-40 min, curing time 3-4 h
• Linear shrinkage ≤0.3% dimensional stability
• Excellent ink and solvent resistance
• Consistent performance batch after batch
Technical Parameters
Model: HY-912 | Color: White | Hardness: 30±2 Shore A | Viscosity: 32000±2000 mPa.s | Operation Time: 30-40 min | Cure Time: 3-4 h | Tensile Strength: 4.0 MPa | Tear Strength: 25±2 kN/m | Elongation: 340% | Mix Ratio: 100:2~100:3 | Density: 1.13±0.03 g/cm3
Model: HY-901 | Color: White | Hardness: 30±2 Shore A | Viscosity: 32000±2000 mPa.s | Operation Time: 30-40 min | Cure Time: 3-4 h | Tensile Strength: 3.8 MPa | Tear Strength: 22±2 kN/m | Elongation: 380% | Mix Ratio: 100:2~100:3 | Density: 1.12±0.03 g/cm3
Model: HY-902 | Color: White | Hardness: 30±2 Shore A | Viscosity: 35000±2000 mPa.s | Operation Time: 30-40 min | Cure Time: 3-4 h | Tensile Strength: 4.0 MPa | Tear Strength: 24±2 kN/m | Elongation: 430% | Mix Ratio: 100:2~100:3 | Density: 1.15±0.03 g/cm3
Model: HY-916 | Color: White | Hardness: 14±2 Shore A | Viscosity: 36000±2000 mPa.s | Operation Time: 30-40 min | Cure Time: 3-4 h | Tensile Strength: 3.5 MPa | Tear Strength: 25±2 kN/m | Elongation: 570% | Mix Ratio: 100:2~100:3 | Density: 1.10±0.03 g/cm3
Application Scenarios
Multi Color Overprinting on Plastic Toys
Plastic toy surfaces feature irregular shapes with large curvatures requiring multi color fine patterns such as cartoon character eyes and clothing designs. HY-912 pads offer high tear strength resisting aging during repeated ink and solvent contact in multi color overprinting. Consistent ink pickup and clean release prevent color bleeding, accurately reproducing design patterns. Elongation 340% and good resilience ensure tight conformity to toy surface curvatures for complete pattern transfer.
Fine Pattern Printing on Electronic Housings
Electronic housings such as phone cases, remote controls and keyboard keys require fine text, icons and logos with high printing clarity. HY-912 pads feature linear shrinkage ≤0.3% for dimensional stability ensuring precise pad shapes and accurate fine pattern printing. Excellent ink and solvent resistance maintains stable performance during prolonged UV ink contact. Tear strength 25±2 kN/m resists tearing during high frequency mass production operations.
Application and Operation Instructions
Step 1: Prepare clean dry mold, component A and B, digital scale, stirring rod, vacuum chamber and gloves.
Step 2: Weigh component A and B at 100:2 to 100:3 ratio accurately using digital scale.
Step 3: Mix thoroughly for 2 to 3 minutes scraping container bottom and walls, stir gently to avoid bubbles.
Step 4: Degas in vacuum chamber at 0.08 to 0.1 MPa for 3 to 5 minutes until no more bubbles rise.
Step 5: Pour slowly from one side of mold allowing natural flow, avoid overfilling.
Step 6: Cure at room temperature approximately 25°C for 3 to 4 hours, demold and rest 24 hours before use.
Selection Guide
HY-901 Economy: 30±2A, tear 22±2 kN/m, cost effective for general printing.
HY-902 High Wear: 30±2A, tear 24±2 kN/m, elongation 430%, for high volume high frequency printing.
HY-912 Multi Color: 30±2A, tear 25±2 kN/m, consistent ink transfer, for multi color overprinting and fine patterns.
HY-916 Ultra Soft: 14±2A, elongation 570%, for large curvature complex irregular surfaces.
Recommended Application
Most recommended for multi color overprinting and fine pattern printing on plastic toys and electronic housings.
Quality and Compliance
ISO 9001 certified, each batch tested for hardness, viscosity, tensile, tear, elongation and curing time with COA report provided. Complies with RoHS and REACH regulations. Brand history over 20 years, exported to more than 80 countries.

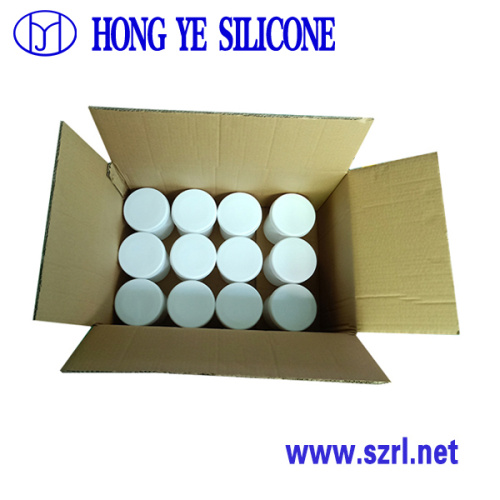

Packaging Specifications
Component A: 20kg drum, 25kg drum, 200kg iron drum. Component B: 1kg bottle. Trial packs 1kg and 5kg available. Components packed separately. OEM private label supported.
Competitive Advantages
Own production facility with monthly capacity over 100 tons, standard models ship same day. Performance meets international standards at more than 30% lower cost. Professional technical team with free consultation and custom formulation. OEM private label with low MOQ and short lead time.
Ordering and Logistics
Payment via T/T, PayPal and Western Union. Free 1kg samples available freight collect. Standard stock ships in 1 to 3 days, custom products in 7 to 15 days. Non dangerous goods for transport. COA, datasheet and MSDS included with each shipment.
Technical Support and Customization
Engineers with over 10 years average experience provide full lifecycle technical support from selection to printing. Custom formulations for hardness, viscosity, curing time and color with MOQ 50kg and lead time 7 to 15 days. Regular customer follow ups.
Precautions
Wear nitrile or PVC gloves, avoid contact with tin sulfur and amine substances, weigh accurately with digital scale, mix thoroughly, cure at 15 to 35°C, ensure adequate ventilation.
Storage
Store in cool dry area at 5 to 30°C away from sunlight, shelf life 12 months unopened, reseal immediately after use, component B can be refrigerated to extend shelf life.
Frequently Asked Questions
Q: How many prints can HY-912 pads deliver?
A: Under normal use, 100,000 to 150,000 prints depending on frequency, ink type and maintenance.
Q: How to prevent color bleeding in multi color printing?
A: Clean pad surface thoroughly with 专用 cleaner between color changes, HY-912 consistent ink transfer helps prevent bleeding.
Q: What causes bubbles on cured pads?
A: Air introduced during mixing and pouring, use vacuum degassing for 3 to 5 minutes and pour slowly from one side.
Q: Can worn pads be repaired with fresh silicone?
A: Not recommended, old surfaces absorb ink and solvents resulting in poor adhesion, replace directly as HY-912 is cost effective.
